Features:

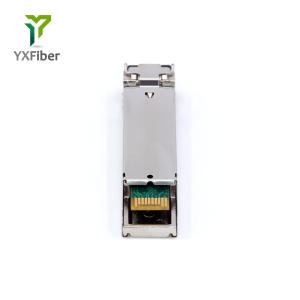

1. 2.5G-1550/1490nm-80KM

2. Dual data-rate of 2.5Gbps operation

3. 1550nm DFB laser and PIN photo detector for 80km transmission

4. 1490nm DFB laser and PIN photo detector for 80km transmission

5. BIDI LC/UPC type pluggable optical interface

6. Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

7. RoHS compliant and lead-free

8. Single +3.3V power supply

9. Support Digital Diagnostic Monitoring interface

10. Case operating temperature Commercial: 0°C to +70°C

Advantages:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 40km transmission distance.

2. The low jitter and high sensitivity are extinguished advantages with DFB LD and PIN receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.

Specifications:
